Mixed Signal Front-End IP Portfolio

Mixed Signal Front-End IP

GUC offers a wide range of Communication Analog Front-end (AFE) IPs for ASIC design across TSMC processes from 2nm to 65nm, including Analog-to-Digital Converter (ADC), Digital-to-Analog Converter (DAC), and Phase-Lock-Loop (PLL) IPs. GUC supports IP customization to meet customers’ specific functional and electrical requirements. By combining GUC’s IPs with its design services, we enable customers to achieve high-quality ASICs with faster time-to-market.

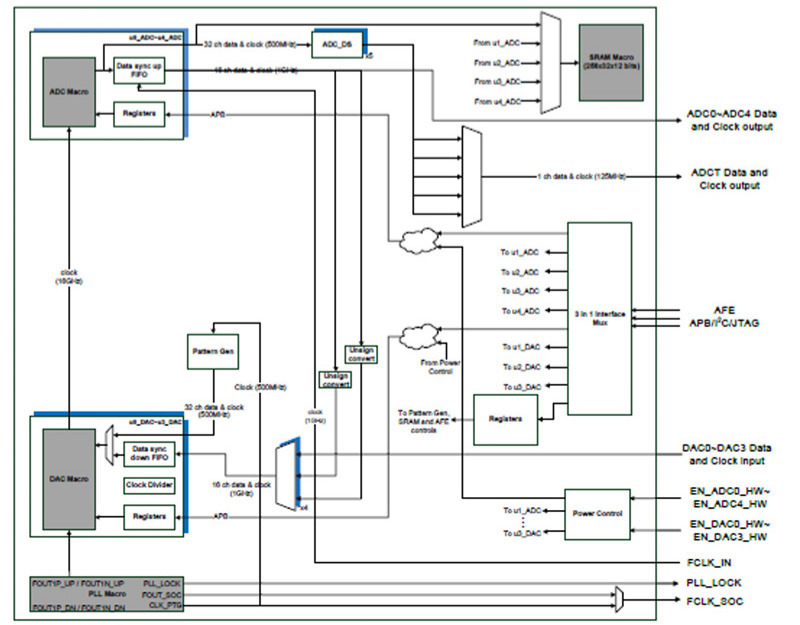

Multi-Channel AFE

4 channel Tx (DAC), 4 channel Rx (ADC), 1 channel FB (ADC)
Build in PLL and clock buffer
Internal pattern generator and SRAM build in for production testing
Both internal and external loopback mode are available
APB/I2C/JTAG 3-in-1 register interface

File Download

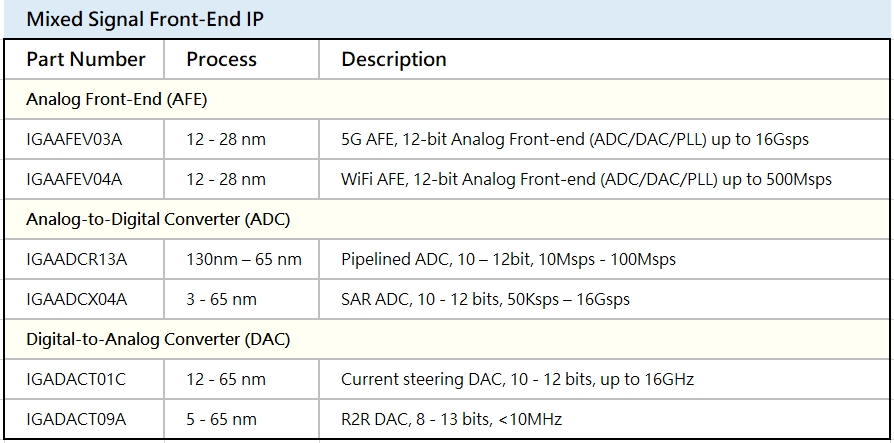

Name

Download

Name

IGAADCR13A

IGAADCX04A

IGAAFEV03A

IGAAFEV04A

IGADACT01C

IGADACT09A
