GUC's 5G Analog Front-End (AFE) IP has been silicon proven in TSMC 12nm technology node and now production ramping in 5G leading customer's product. It integrates Analog-to-Digital Converter (ADC), Digital-to-Analog converter (DAC), and ultra-low jitter PLL. Supporting frequency is up to 16GSps, and 7.5GHz analog input/output frequency. AFE IP also integrates production test solution and APB/I2C/JTAG interface for easy integration to enable ASIC successfully.

Key Features:

Application

•  Sampling rate 16G/8G/4G configurable
•  Wide bandwidth analog input supporting
•  0.4GHz to 7.5GHz
•  Support sub-6 and mmWave
•  Integrate ADC/DAC/PLL, 4T4R1FB overall solution

Performance

•  NSD : -153 dBFS/Hz (ADC), -161dBFS/Hz (DAC)
•  SFDR : minimum -69dBc (ADC), -57dBc (DAC)

Power consumptions

•  ADC : 400mW (sub-6), 600mW (mmWave)
•  DAC : 400mW (sub-6), 600mW (mmWave)

Production solution build in

•  I2C/JTAG/APB register interface supporting

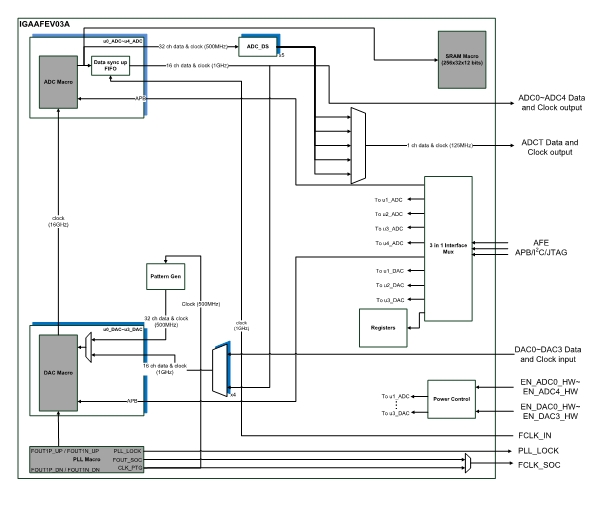

Block diagram of IGAAFEV03A
