GUC N5 HBM2E 3.6G/4G Silicon Proven
- GUC N5 HBM2E has passed all PVT corner testing up to 4G
- GUC HBM Record and Roadmap

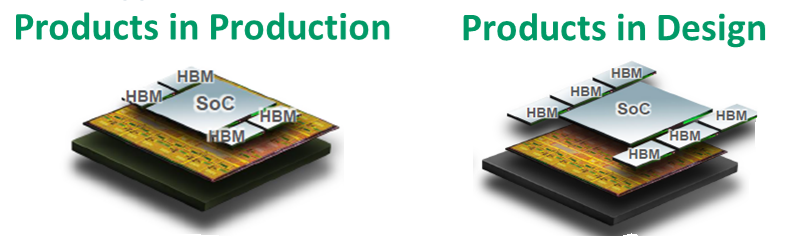

- Multiple HBM2/2E customer AI/HPC products under mass production
- Multiple HBM2E and HBM3 customer AI/HPC/Networking products are in design stage

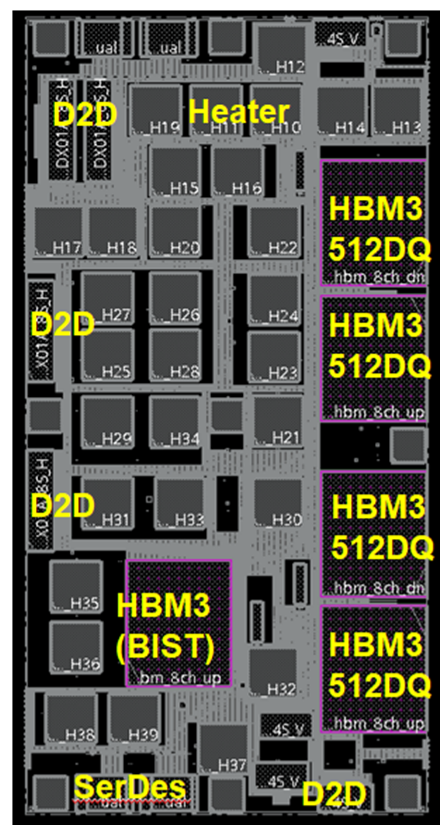

- World 1st N7/N6 HBM3 CoWoS platform taped out in Jun'21
- N5 and N3 HBM3 IP will be available in 1H22 and 2H22, respectively
- Support both CoWoS-S and CoWoS-R
- GUC HBM/CoWoS Total Solution
- In-house HBM2E Controller and PHY IP

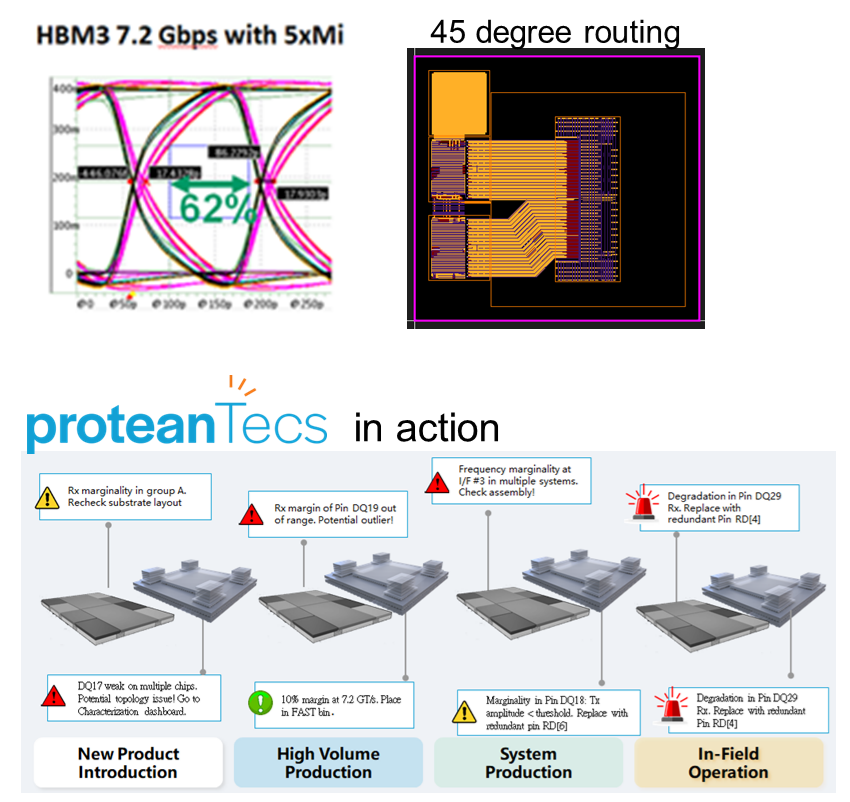

- Proprietary interposer layout pattern to achieve best SI/PI
- Support Y direction offset by zig-zag or 45o
- Embedded all-pin, in-mission mode performance and health monitoring by proteanTecs
- Best CoWoS manufacturing management
GUC Core Strengths
- Advanced Packaging Technology Leadership
- Design Engineering Excellence
- Customer Trusted Service
