GUC silicon-proven 5G JESD204C IP for TSMC 12nm technology have been adopted and successfully taped out in 5G leading customer's product in 1Q21
Key Feature

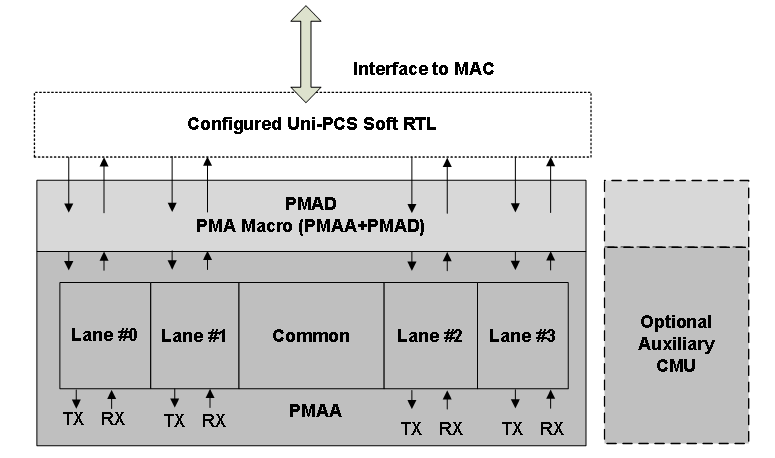

- Quad-lane configuration JESD204C PHY SerDes
- Supported data rates (Gb/s) : 24.33 / 16.22 / 12.17 / 10.14 / 8.11
- PMAA (PMA Analog)
- RX Adaptive Decision Feedback Equalizer (DFE)
- RX Programmable Continuous Time Linear Equalizer (CTLE)
- RX Variable Gain Control
- RX built-in fault detector (Loss-of-lock/Loss-of-signal)
- Adjustable TX de-emphasis (FFE)
- Supports RX Eye Monitor
- Support JTAG 1149.6 boundary scan interface
- PMAD (PMA Digital) & Testability
- Built-in BIST functions (PRBS7, PRBS9, …, PRBS31 and User Defined generators & checkers)
- Polarity inversion and bit reversal control
- Multiple Loopback modes
- Selectable TX/RX data bit-wide control (20/40/16/32/64)
- LOL (Loss of Lock) & LOS (Loss of Signal) detection
