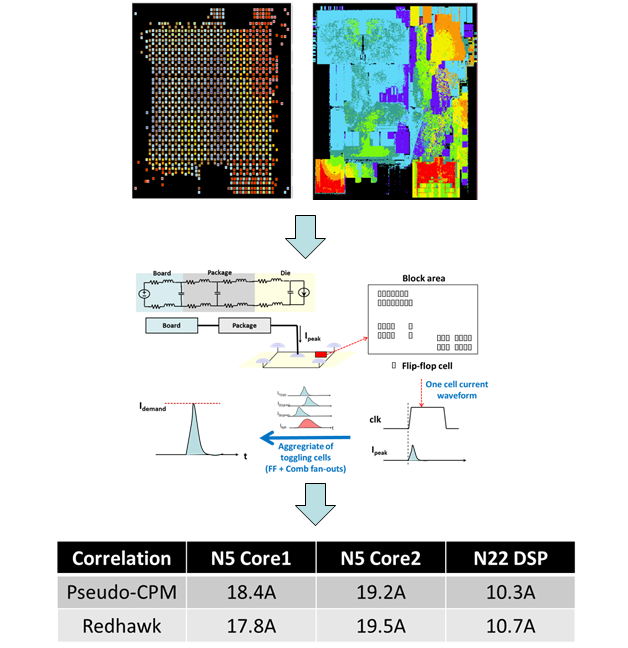

Early Stage IR Drop Prevention: GUC in-house Pseudo CPM (Chip Power Model) for P/G Bump Current Estimation
-
Challenge
P/G bump allocation and peak current distribution are critical for IR drop mitigation, especially in power domain edge region.
-
Methodology
-
Accurately estimate P/G bump peak current in early design stage, based on circuit multi-scenario activity and bump physical location.
-
Optimize P/G bump location, circuit design and toggle rate to reduce IR drop issue with customer.
-
Benefit
-
Enable the quick turn-around time in early design tuning to prevent the localized simultaneous toggle and insufficient bump allocation.
-
Serve the efficient DFT circuit topology optimization.
